GitHub ↔ Azure DevOps Integration: A Deep Dive

Scope: Repositories live in GitHub (Enterprise); Boards and Pipelines live in Azure DevOps.
This document explains every moving part—identities, tokens, webhooks, and apps—that make the integration work.

Often times, I see a lot of people struggle to comprehend the GitHub and Azure DevOps integrations- how the identities are involved, how tokens are managed and what is the best way to integrate them etc. Which led me writing this article to shed some light into the under-the-hood matter.

Table of Contents

1. Architecture Overview
2. Service Connections — What Happens Under the Hood
3. Deep Dive: GitHub App Authentication — The Full Machinery
4. The “Azure Pipelines” GitHub App — Role & Internals

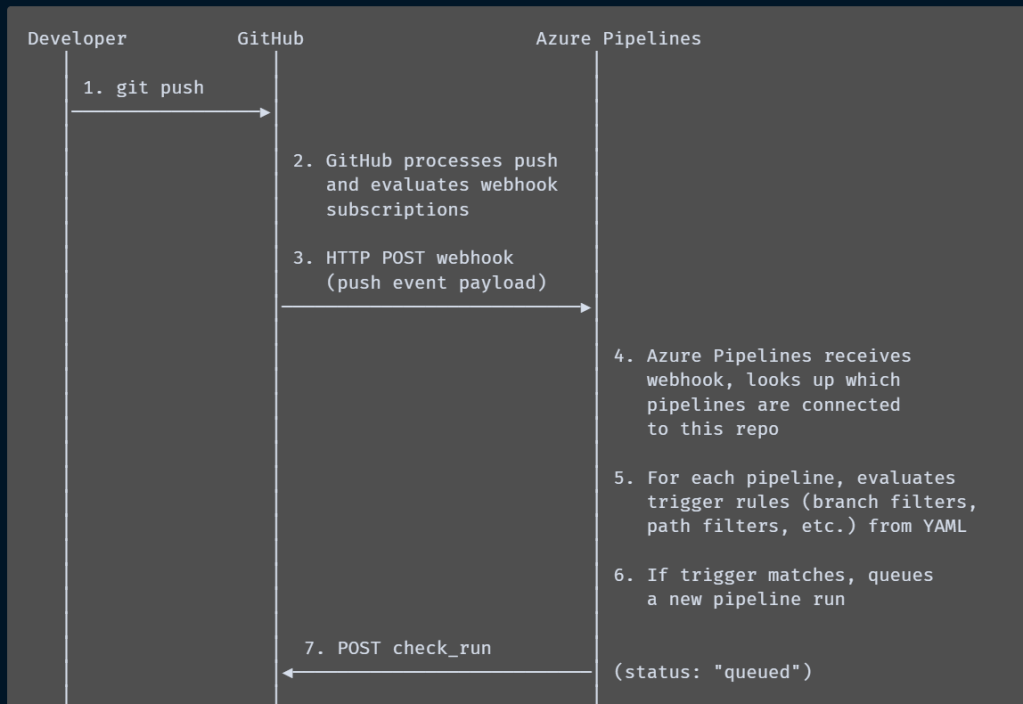

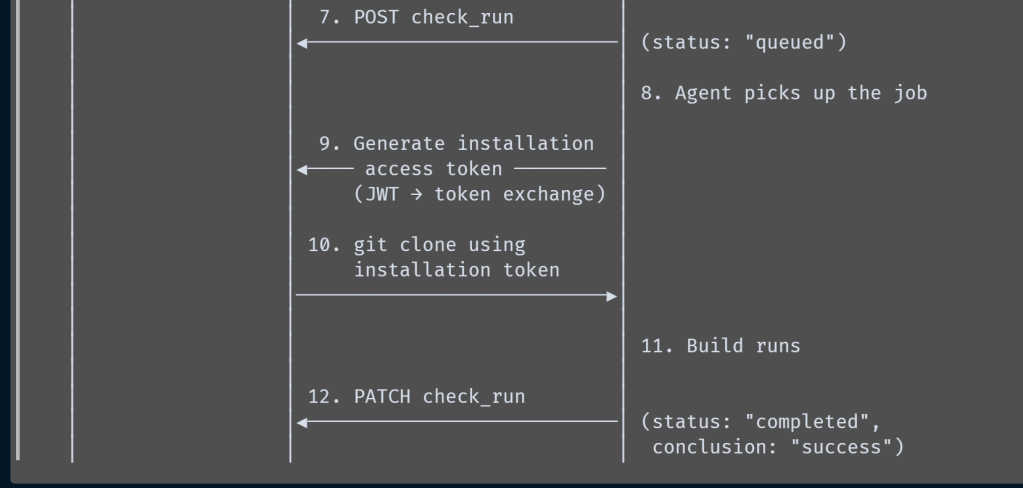

5. Trigger Mechanism — How a Commit Becomes a Pipeline Run

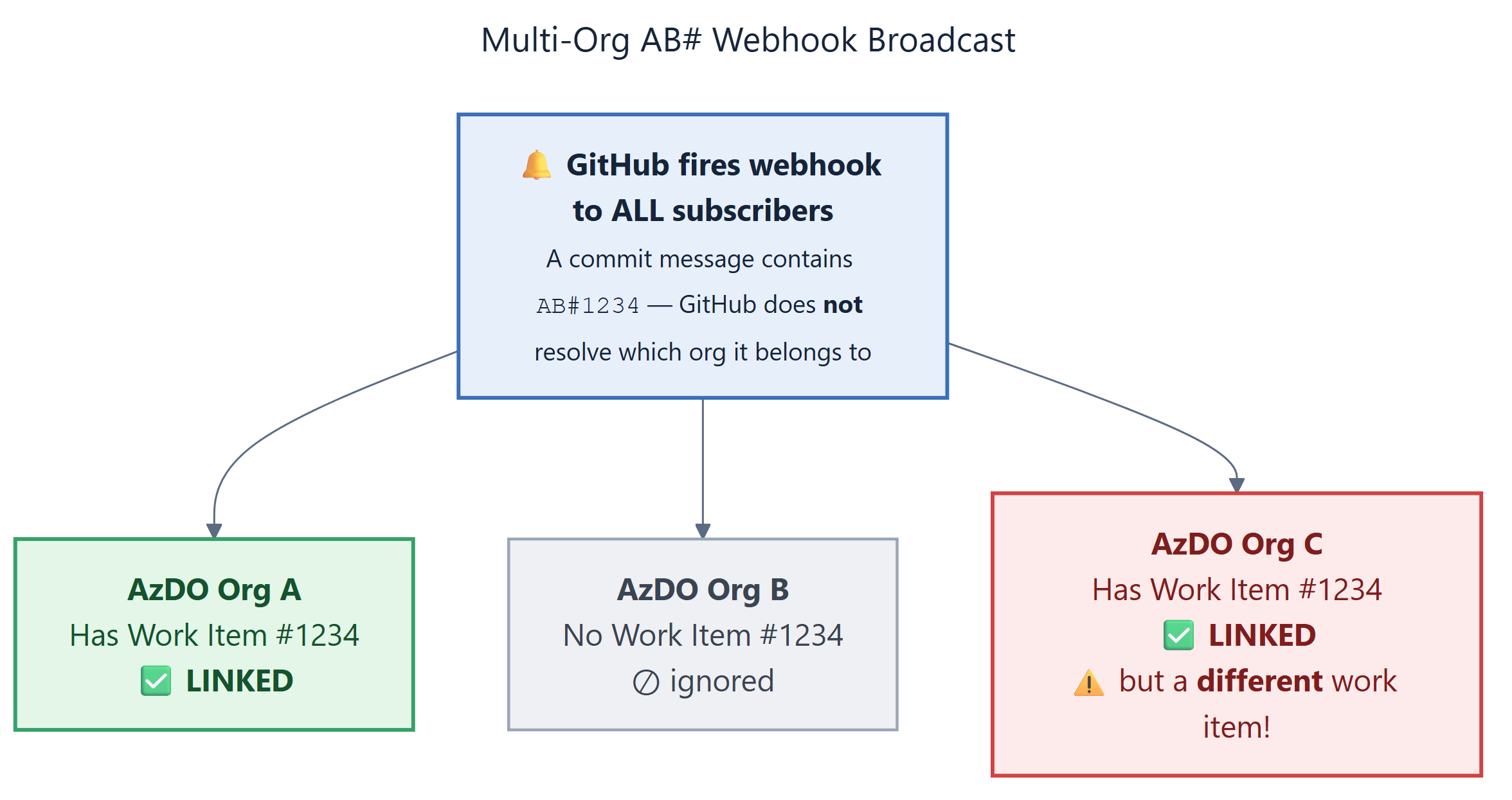

6. Azure Boards AB# Linking — Multi-Org Resolution
7. Fact-Check: “OAuth Dance for YAML Commit, Installation Token for Pipeline Runs”
8. Deep Dive: GitHub Installation Tokens (ghs_) — The Complete Picture
9. References

1. Architecture Overview

When you use GitHub for source code and Azure DevOps for boards + pipelines, three integration surfaces exist:

There are two distinct GitHub Apps involved (often confused):

• Azure Pipelines (github.com/apps/azure-pipelines) — for CI/CD pipeline integration.
• Azure Boards (github.com/apps/azure-boards) — for work-item linking via AB#.

Each is installed separately and serves a different purpose.

Citation: GitHub integration overview — Azure DevOps | Microsoft Learn

2. Service Connections — What Happens Under the Hood

When you create a pipeline in Azure DevOps and select a GitHub repo, Azure DevOps must create a service connection — a secure credential store that lets the pipeline reach GitHub. There are three authentication methods, each with very different internals.

2.1 OAuth-Based Service Connection

This is the flow that happens when you click “Grant authorization” in the Azure DevOps new-pipeline wizard.

Prerequisite: Microsoft Pre-Registered an OAuth App on GitHub

This is the key detail that makes the whole flow work.

Before any user ever clicks “Grant authorization,” Microsoft’s engineering team registered an OAuth App on GitHub through the standard developer registration process (the same github.com/settings/developers → “New OAuth App” flow any developer can use). When you register an OAuth App on GitHub, GitHub issues a client_id and client_secret pair. Microsoft stores that client_secret on the Azure DevOps backend.

So GitHub’s authorization server already knows this client_id — because GitHub itself created and issued it. The OAuth App shows up as “Azure Pipelines” when you look at your authorized applications in GitHub (github.com/settings/applications). There is a separate OAuth App called “Azure Boards” for the boards integration — they are distinct apps with different client IDs.

This is standard OAuth 2.0 — the authorization server (GitHub) must have a prior registration of the client (Azure DevOps) before it will accept any authorization requests. Without this pre-registration, GitHub would reject the /login/oauth/authorize redirect with an “application not found” error.

Citation proving client ID ownership: The official Microsoft documentation at MicrosoftDocs/azure-devops-docs/docs/pipelines/repos/github.md explicitly references this client ID four times, each time directing users to manage the Azure Pipelines OAuth App permissions at https://github.com/settings/connections/applications/0d4949be3b947c3ce4a5. The rendered version is at Build GitHub repositories — Azure Pipelines | Microsoft Learn.

Note: There is a separate OAuth App called “Azure Boards” also registered by Microsoft on GitHub — that one handles the boards/work-item integration. They are two distinct OAuth Apps with different client IDs.

Real-World Proof: Captured OAuth Redirect

When you create a pipeline in Azure DevOps and choose “Grant authorization,” your browser is redirected to a URL like this (captured from a live session):

https://github.com/login/oauth/authorize
  ?client_id=0d4949be3b947c3ce4a5
  &scope=repo,read:user,user:email,admin:repo_hook
  &state=<double-URL-encoded JSON>

The state parameter, when double-URL-decoded, reveals a JSON object that Azure DevOps uses to route the callback:

{
  "ConfigurationId": "9b079bb9-758f-452e-a3e8-8deed3054af2",
  "ProjectId": "489c881e-0e9a-4017-b02c-e3378584f955",
  "CallbackUri": "https://dev.azure.com:443/moim/{projectId}/_admin/_services/callback/github?redirectUrl=...&useWellKnownStrongBoxLocation=true&__RequestVerificationToken=...",
  "AuthorizationUrl": "https://github.com//login/oauth/authorize?client_id=0d4949be3b947c3ce4a5",
  "EndpointType": "github"
}

The four OAuth scopes requested tell you exactly what Azure DevOps needs:

Citation: Authorizing OAuth Apps — GitHub Docs

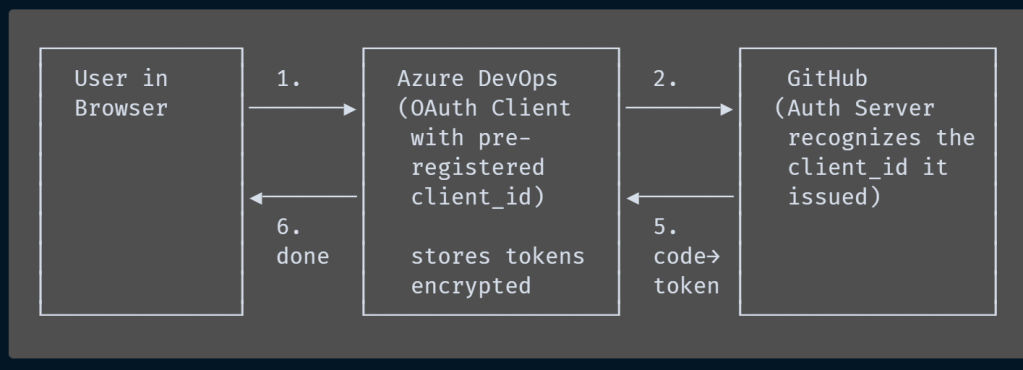

Step-by-step internal flow:

1. Redirect to GitHub: Azure DevOps redirects your browser to github.com/login/oauth/authorize with the pre-registered client_id that GitHub itself issued to Microsoft. GitHub looks up this client_id in its OAuth App registry, finds the “Azure DevOps” application, and renders the consent screen showing the app name, logo, and requested permissions.
2. User consent: GitHub shows a consent screen. The scopes requested are:
   • repo — full access to private and public repositories (needed to clone source code).
   • admin:repo_hook — ability to create/delete webhooks on repos (needed for triggers).
   • repo:status — read/write commit status (needed to report build results).
3. Authorization code returned: GitHub redirects back to Azure DevOps with a one-time authorization code.
4. Token exchange: Azure DevOps server-side exchanges the authorization code for an OAuth access token (and optionally a refresh token) via POST https://github.com/login/oauth/access_token.
5. Storage: The access token is encrypted at rest and stored in the Azure DevOps service connection. The token is scoped to the user who authorized it — it can access only the repos that user can access.

What the service connection object holds:

Token lifecycle:

• GitHub classic OAuth tokens do not expire unless the user revokes them or the org admin deauthorizes the OAuth App.
• If the token is revoked, pipelines will fail silently the next time they try to use it.
• Azure DevOps does not currently auto-rotate OAuth tokens.

Citation: Build GitHub repositories — Azure Pipelines | Microsoft Learn

2.2 PAT-Based Service Connection

When you choose “Personal Access Token,” the flow is simpler but carries more operational overhead.

What happens:

1. You generate a PAT in GitHub → Settings → Developer settings → Personal access tokens.
2. You paste the PAT into the Azure DevOps service connection form.
3. Azure DevOps stores it encrypted in its credential vault.

What the service connection holds:

How it’s used at runtime:

When the pipeline agent needs to clone the repo, Azure DevOps injects the PAT into the git clone command as a bearer token:

git -c http.extraheader="AUTHORIZATION: basic <base64(:PAT)>" clone https://github.com/org/repo.git

The PAT is never logged — Azure DevOps masks it in pipeline output. It’s injected only for the duration of the checkout step.

Key risks:

• The PAT is tied to a single human user. If that user leaves the org, pipelines break.
• PATs have expiration dates. You must manually rotate them.
• A PAT with repo scope grants access to every repo the user can see, not just the one in the pipeline.

Citation: Managing your personal access tokens — GitHub Docs

2.3 GitHub App-Based Service Connection (Recommended)

This is the most secure option and the one Microsoft recommends for production.

How it differs:

Instead of authenticating as a user, Azure DevOps authenticates as the Azure Pipelines GitHub App — an application identity with its own permissions, independent of any human account.

But first: How does Azure DevOps get the private key?

This is a crucial detail. The private key is NOT shared between GitHub and Azure DevOps. It uses asymmetric cryptography (RSA), where the private key and public key are a mathematically linked pair but knowing one doesn’t reveal the other.

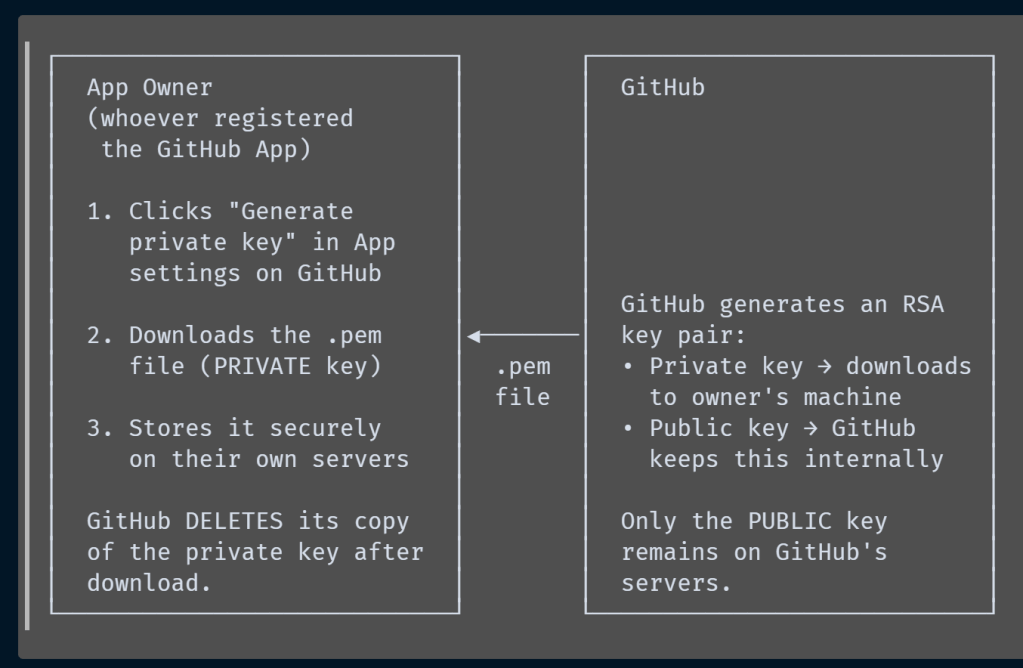

Here’s how it works for GitHub Apps in general:

Key fact: After you download the private key .pem file, GitHub does not retain a copy of it. If you lose it, you must generate a new one. GitHub only keeps the public key to verify signatures.

Citation: Managing private keys for GitHub Apps — GitHub Docs — “Private keys are the single most valuable secret for a GitHub App. Store them securely. Private keys do not expire but can be deleted.”

Now, who owns the Azure Pipelines GitHub App?

The Azure Pipelines GitHub App (github.com/apps/azure-pipelines) is a first-party app registered and owned by Microsoft. This means:

• Microsoft’s engineers registered the app on GitHub.
• Microsoft’s engineers clicked “Generate private key” and downloaded the .pem file.
• Microsoft stores that private key on the Azure DevOps backend infrastructure (likely in Azure Key Vault or a comparable secrets management system).
• GitHub only has the corresponding public key.
• You (the end user) never see or touch this private key.

This is fundamentally different from a scenario where you create your own custom GitHub App for a service connection — in that case, you would generate the private key and upload it to Azure DevOps yourself.

The two scenarios compared:

Internal token flow (asymmetric — no shared secrets):

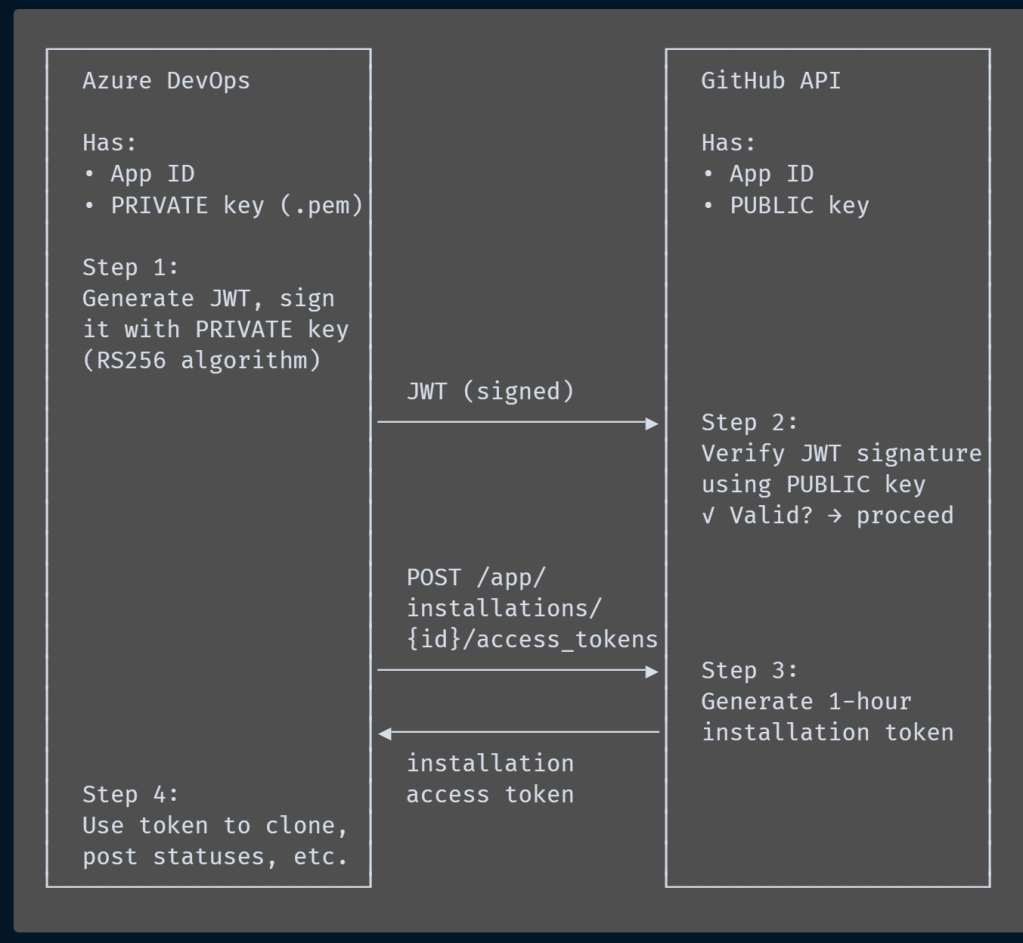

1. JWT generation: Azure DevOps generates a short-lived JWT (JSON Web Token) signed with the App’s private key using the RS256 algorithm (RSA + SHA-256). The JWT contains:
   • iss (issuer): The App ID of the Azure Pipelines GitHub App.
   • iat (issued at): Current time − 60 seconds (to handle clock drift).
   • exp (expires at): Current time + 10 minutes (maximum allowed by GitHub).
2. JWT verification: GitHub receives the JWT and verifies the signature using the public key it retained when the private key was generated. This proves the request genuinely came from the app owner (Microsoft), without the private key ever crossing the wire.
3. Installation access token exchange: If the JWT is valid, Azure DevOps calls:POST https://api.github.com/app/installations/{installation_id}/access_tokens Authorization: Bearer <JWT> GitHub returns a short-lived installation access token (valid for 1 hour) scoped to only the repos the App is installed on.
4. Usage: This installation token is used to clone code, post statuses, etc. After 1 hour it expires, and a new one is generated by repeating steps 1–3.

Why this matters: The private key never leaves Azure DevOps servers. It’s never sent to GitHub. Only the mathematical proof (the signed JWT) crosses the wire, and even that expires in 10 minutes. GitHub verifies it with the public key. This is the same asymmetric-key pattern used in TLS/HTTPS, SSH, and code signing.

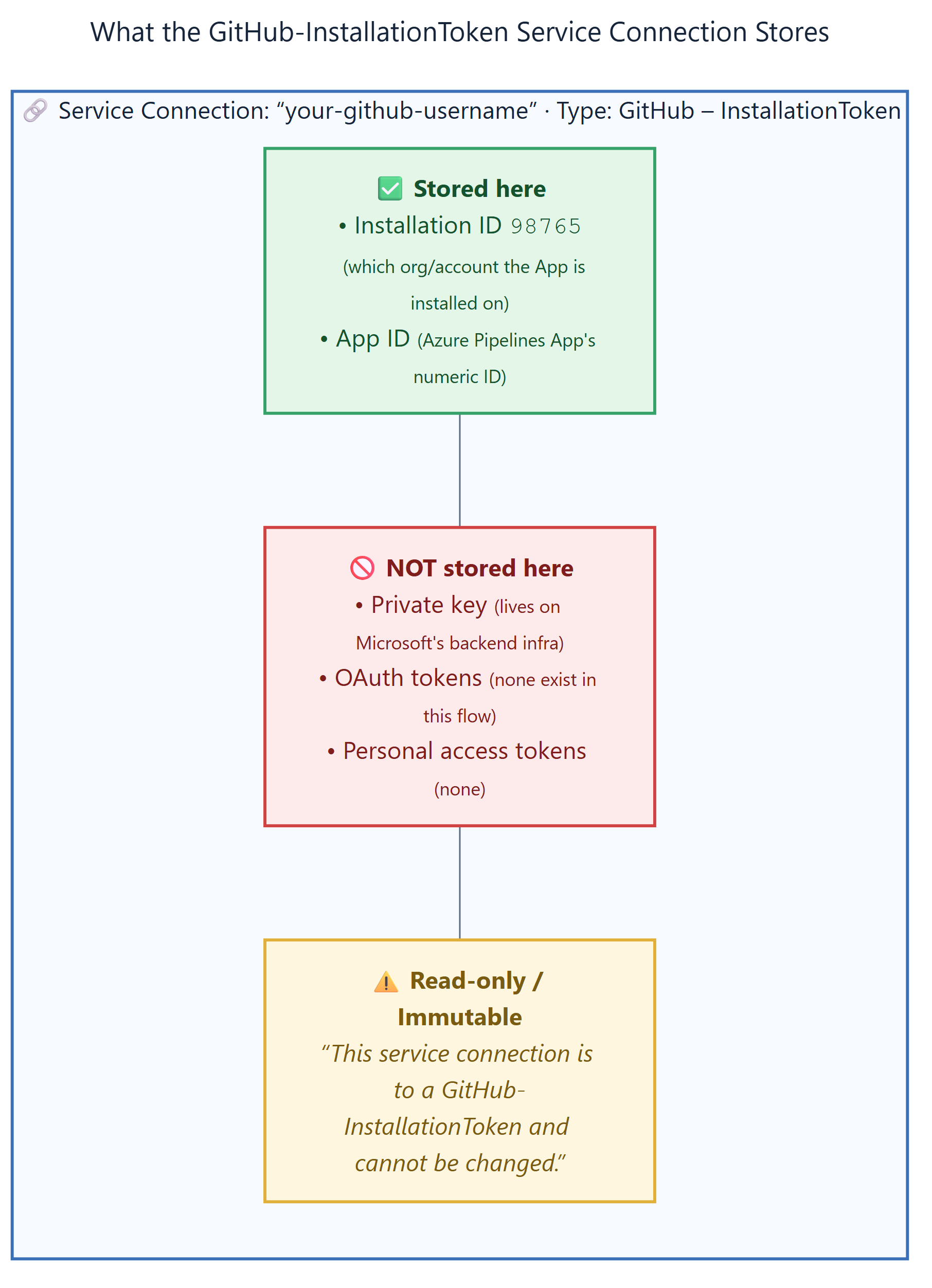

What the service connection holds:

For the built-in Azure Pipelines App, the service connection is lightweight because Microsoft manages the credentials internally:

For a custom GitHub App service connection you create yourself:

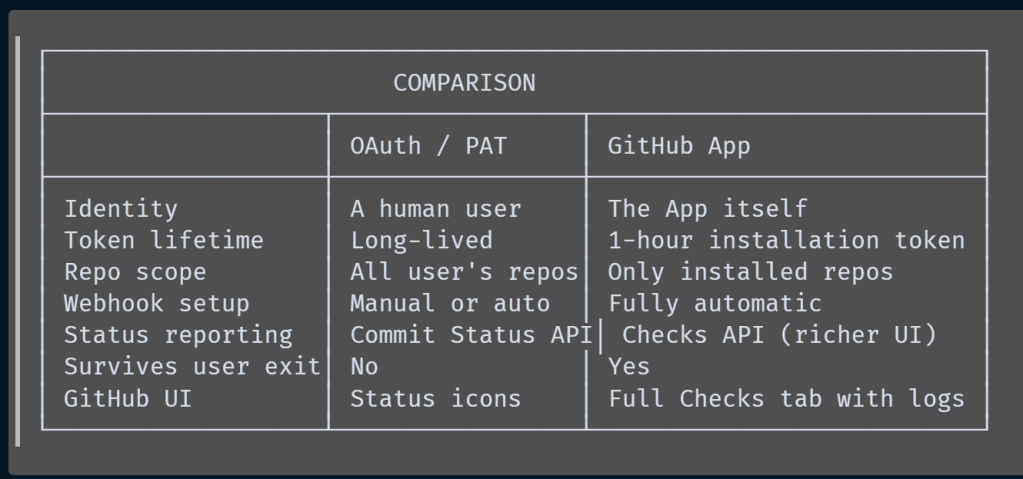

Why this is best:

• No human dependency — the credentials aren’t tied to any user account.
• Short-lived tokens — installation tokens expire in 1 hour; there’s no long-lived secret to steal.
• Asymmetric crypto — the private key never crosses the network; only signed JWTs (which expire in 10 min) are transmitted.
• Fine-grained scope — the App only has access to repos it’s explicitly installed on, not all repos the user can see.
• Survives employee departures — if the person who set it up leaves, the App keeps working.

Citations:
Managing private keys for GitHub Apps — GitHub Docs — explains private key generation, storage, and rotation.
Generating a JWT for a GitHub App — GitHub Docs — explains the RS256-signed JWT structure.
Generating an installation access token — GitHub Docs — explains the JWT→token exchange.
About authentication with a GitHub App — GitHub Docs — overview of the asymmetric authentication model.

3. Deep Dive: GitHub App Authentication — The Full Machinery

This section explains every byte-level step of how a GitHub App authenticates to the GitHub API. This is the mechanism Azure DevOps uses internally when the Azure Pipelines GitHub App is configured.

3.1 The Three Levels of GitHub App Identity

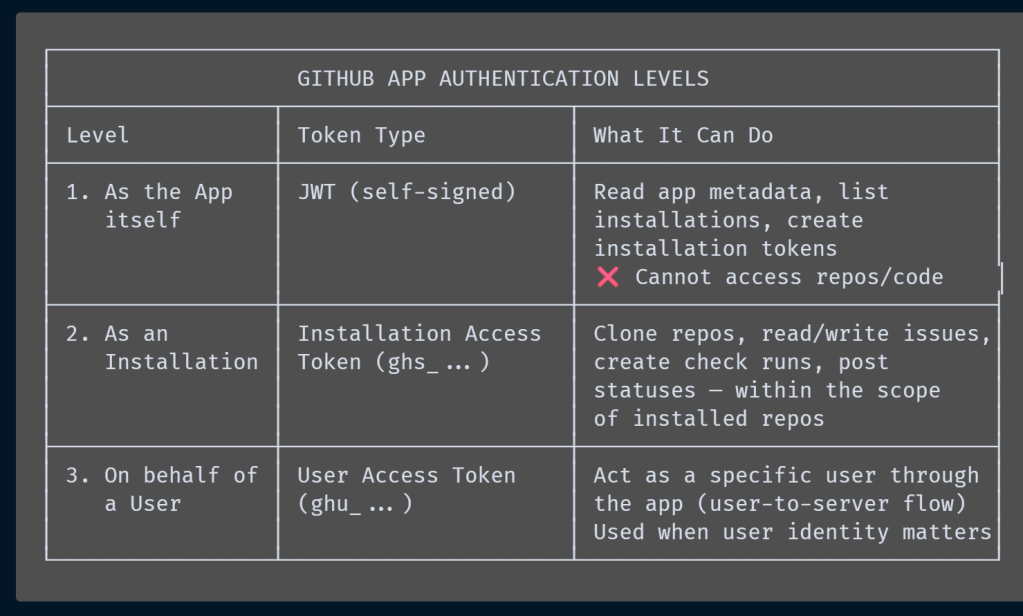

A GitHub App can authenticate at three different levels, each with different capabilities and token types:

Azure Pipelines uses levels 1 and 2: It authenticates as the app (JWT) to get an installation token, then uses that installation token to interact with your repos.

Citation: About authentication with a GitHub App — GitHub Docs

3.2 GitHub Token Prefixes — How to Identify Any Token

GitHub uses identifiable prefixes on all its tokens so they can be detected by secret scanners:

So when Azure DevOps internally receives a token starting with ghs_, it knows this is an installation access token scoped to the installed repos.

Citation: Behind GitHub’s new authentication token formats — GitHub Blog

3.3 Step 1: Producing the JWT — Byte by Byte

A JWT consists of three parts separated by dots: HEADER.PAYLOAD.SIGNATURE, each Base64URL-encoded.

The Header

{
  "alg": "RS256",
  "typ": "JWT"
}

• alg: RS256 — RSA signature with SHA-256 hash. This is the only algorithm GitHub accepts.
• typ: Always JWT.

This is Base64URL-encoded to produce the first segment:

eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9

The Payload (Claims)

{
  "iat": 1710700000,
  "exp": 1710700600,
  "iss": "12345"
}

Important: The iss claim must be the App ID as a string, not an integer. Some JWT libraries serialize integers differently, which can cause signature validation failures.

This is Base64URL-encoded to produce the second segment.

The Signature

The signature is computed as:

RSASSA-PKCS1-v1_5(
  SHA-256(
    Base64URL(header) + "." + Base64URL(payload)
  ),
  private_key
)

In plain English:

1. Concatenate the Base64URL-encoded header and payload with a dot separator.
2. Hash the result with SHA-256.
3. Sign the hash with the RSA private key using PKCS#1 v1.5 padding.
4. Base64URL-encode the signature.

The final JWT is: <header>.<payload>.<signature>

Code Example (Python):

import jwt       # PyJWT library
import time
import pathlib

# Load the private key (.pem file downloaded from GitHub)
private_key = pathlib.Path("app-private-key.pem").read_text()

# Build the JWT
now = int(time.time())
payload = {
    "iat": now - 60,          # Issued 60 seconds ago (clock drift buffer)
    "exp": now + (10 * 60),   # Expires in 10 minutes
    "iss": "12345"            # Your GitHub App ID (as string)
}

encoded_jwt = jwt.encode(payload, private_key, algorithm="RS256")
# Result: "eyJhbGci....<long string>....XYZ"

Citation: Generating a JSON Web Token (JWT) for a GitHub App — GitHub Docs

3.4 Step 2: Authenticating as the App (JWT → GitHub API)

With the JWT in hand, Azure DevOps can now authenticate as the app itself. This is the most limited level — it can only call app-level endpoints:

GET https://api.github.com/app
Authorization: Bearer eyJhbGciOiJSUzI1NiIs...
Accept: application/vnd.github+json

What GitHub does when it receives this request:

1. Decodes the JWT header → extracts alg: RS256.
2. Decodes the JWT payload → extracts iss: "12345" (App ID).
3. Looks up App ID 12345 in its database → finds the corresponding public key.
4. Verifies the signature: takes Base64URL(header).Base64URL(payload), hashes it, and checks the signature against the public key.
5. Checks exp → if the JWT has expired, rejects with 401.
6. Checks iat → if it’s too far in the future, rejects.
7. If all checks pass → responds with app metadata.

Response (app metadata):

{
  "id": 12345,
  "slug": "azure-pipelines",
  "name": "Azure Pipelines",
  "owner": {
    "login": "Microsoft",
    "type": "Organization"
  },
  "html_url": "https://github.com/apps/azure-pipelines",
  "created_at": "2018-09-01T00:00:00Z",
  "permissions": {
    "checks": "write",
    "contents": "read",
    "pull_requests": "write",
    "statuses": "write",
    "metadata": "read"
  }
}

What can be called with just the JWT (limited set):

You CANNOT clone repos, read code, create issues, or post statuses with just the JWT. You must exchange it for an installation token first.

Citation: Authenticating to the REST API — GitHub Docs

3.5 Step 3: Getting the Installation ID

Before requesting an installation token, Azure DevOps needs to know the installation ID — a numeric identifier representing “this App installed in this specific org/account.”

GET https://api.github.com/app/installations
Authorization: Bearer <JWT>
Accept: application/vnd.github+json

Response (list of installations):

[
  {
    "id": 98765,
    "account": {
      "login": "your-github-org",
      "type": "Organization"
    },
    "app_id": 12345,
    "target_type": "Organization",
    "permissions": {
      "checks": "write",
      "contents": "read",
      "pull_requests": "write"
    },
    "repository_selection": "selected",
    "created_at": "2024-01-15T10:00:00Z"
  }
]

Key fields:

• id: 98765 — this is the installation ID needed for the next step.
• repository_selection: "selected" — means the App only has access to specifically chosen repos (not all repos in the org).

In practice, Azure DevOps already stores the installation ID in the service connection from when the App was first installed, so this step is usually skipped at runtime.

Citation: Authenticating as a GitHub App installation — GitHub Docs

3.6 Step 4: Exchanging the JWT for an Installation Access Token

This is the critical step. Azure DevOps trades the short-lived JWT for a scoped installation token:

POST https://api.github.com/app/installations/98765/access_tokens
Authorization: Bearer <JWT>
Accept: application/vnd.github+json
Content-Type: application/json

{
  "repositories": ["my-repo"],
  "permissions": {
    "contents": "read",
    "checks": "write"
  }
}

The request body is optional. If omitted, the token gets all permissions and all repos the installation has access to. If provided, it allows further scoping down — you can request fewer permissions or fewer repos than the App is installed with.

Response:

{
  "token": "ghs_ABCDEFghijklmnop1234567890xyz",
  "expires_at": "2026-03-17T09:53:00Z",
  "permissions": {
    "contents": "read",
    "checks": "write"
  },
  "repository_selection": "selected",
  "repositories": [
    {
      "id": 555,
      "name": "my-repo",
      "full_name": "your-github-org/my-repo",
      "private": true
    }
  ]
}

Critical details about this token:

Citation: Generating an installation access token for a GitHub App — GitHub Docs
Citation: REST API — Create an installation access token — GitHub Docs

3.7 Step 5: Using the Installation Token to Call GitHub APIs

Now Azure DevOps has a ghs_ token that can actually do things. Here’s how it’s used for the two most common pipeline operations:

Cloning source code:

The pipeline agent injects the token into the git clone command:

git -c http.extraheader="AUTHORIZATION: basic $(echo -n 'x-access-token:ghs_ABCDEF...' | base64)" \
    clone https://github.com/your-github-org/my-repo.git

Or equivalently:

git clone https://x-access-token:ghs_ABCDEF...@github.com/your-github-org/my-repo.git

GitHub’s git server validates the ghs_ token against the installation’s permissions and repo access. If contents: read is granted for this repo, the clone succeeds.

Creating a check run (reporting build status):

POST https://api.github.com/repos/your-github-org/my-repo/checks
Authorization: token ghs_ABCDEFghijklmnop1234567890xyz
Accept: application/vnd.github+json
Content-Type: application/json

{
  "name": "Azure Pipelines - my-pipeline",
  "head_sha": "abc123def456...",
  "status": "in_progress",
  "details_url": "https://dev.azure.com/your-org/your-project/_build/results?buildId=789",
  "output": {
    "title": "Build in progress",
    "summary": "Pipeline 'my-pipeline' is running..."
  }
}

Later, when the build completes:

PATCH https://api.github.com/repos/your-github-org/my-repo/check-runs/{check_run_id}
Authorization: token ghs_ABCDEFghijklmnop1234567890xyz
Accept: application/vnd.github+json
Content-Type: application/json

{
  "status": "completed",
  "conclusion": "success",
  "output": {
    "title": "Build succeeded",
    "summary": "All 247 tests passed. Build completed in 3m 42s."
  }
}

This is what makes the ✅ green check appear on your commit/PR in GitHub.

Citation: Building CI checks with a GitHub App — GitHub Docs

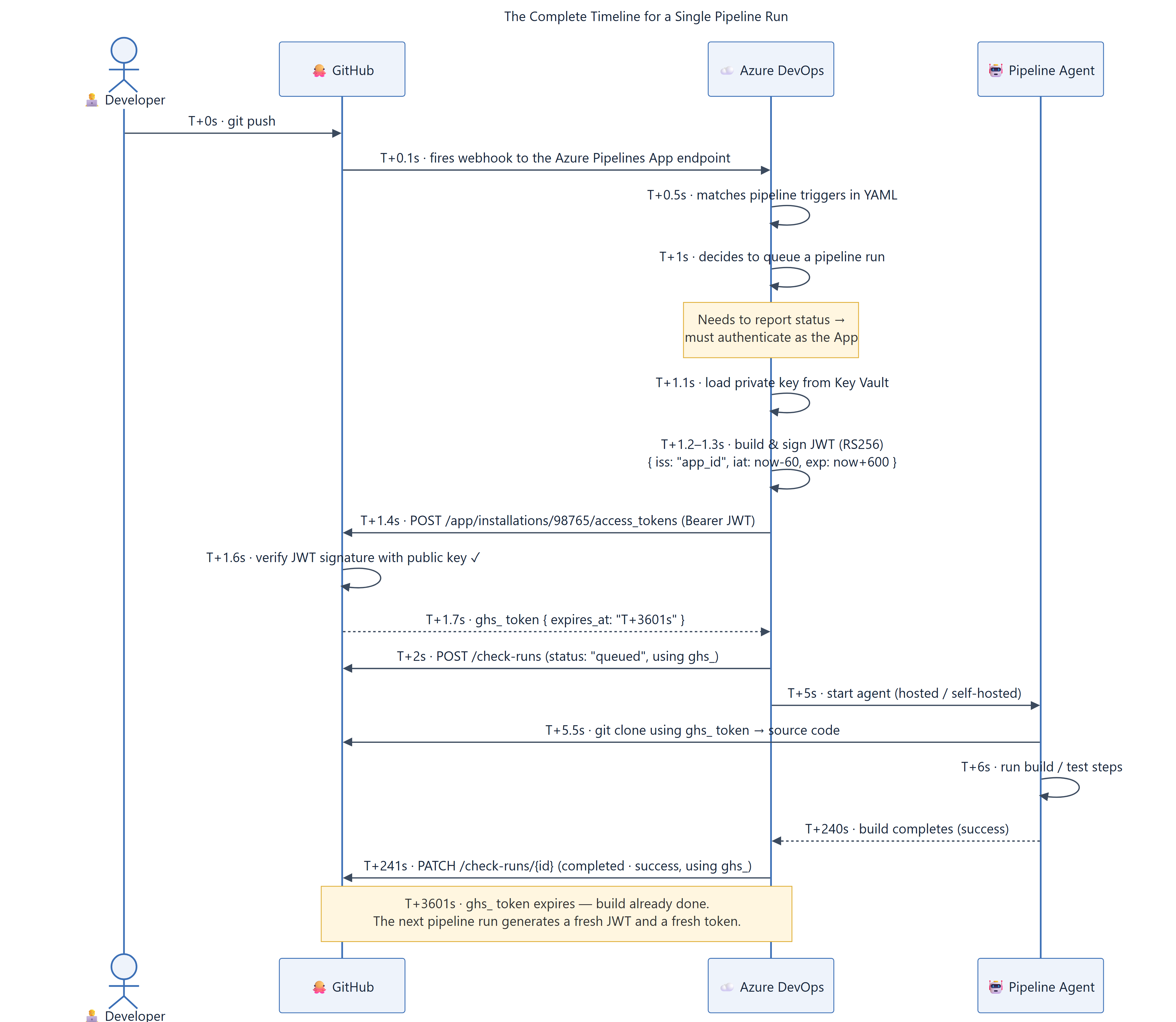

3.8 The Complete Timeline for a Single Pipeline Run

Putting it all together — here’s every authentication step that happens from trigger to completion:

Time    Who                     Does What
─────   ─────────────────────   ──────────────────────────────────────────────────
T+0s    Developer               git push to GitHub
T+0.1s  GitHub                  Receives push, fires webhook to Azure Pipelines App endpoint
T+0.5s  Azure DevOps            Receives webhook, matches pipeline triggers in YAML
T+1s    Azure DevOps            Decides to queue a pipeline run
                                 │
                                 ├─ Needs to report status → must authenticate as the App
                                 │
T+1.1s  Azure DevOps            Loads private key from secure storage (Key Vault)
T+1.2s  Azure DevOps            Builds JWT: { iss: "<app_id>", iat: now-60, exp: now+600 }
T+1.3s  Azure DevOps            Signs JWT with private key (RS256)
T+1.4s  Azure DevOps ──JWT──▶   POST /app/installations/98765/access_tokens
T+1.6s  GitHub                  Verifies JWT signature with public key ✓
T+1.7s  GitHub ──ghs_token──▶   Returns: { "token": "ghs_ABCDEF...", "expires_at": "T+3601s" }
                                 │
T+2s    Azure DevOps             POST /repos/org/repo/check-runs
                                 (status: "queued", using ghs_ token)
                                 │
T+5s    Pipeline Agent           Starts running on hosted/self-hosted agent
T+5.5s  Pipeline Agent           git clone using ghs_ token → clones source code
T+6s    Pipeline Agent           Runs build/test steps
                                 │
T+240s  Pipeline Agent           Build completes (success)
                                 │
T+241s  Azure DevOps             PATCH /repos/org/repo/check-runs/{id}
                                 (status: "completed", conclusion: "success", using ghs_ token)
                                 │
T+3601s                          ghs_ token expires (doesn't matter — build is done)
                                 Next pipeline run will generate a fresh JWT and fresh token.

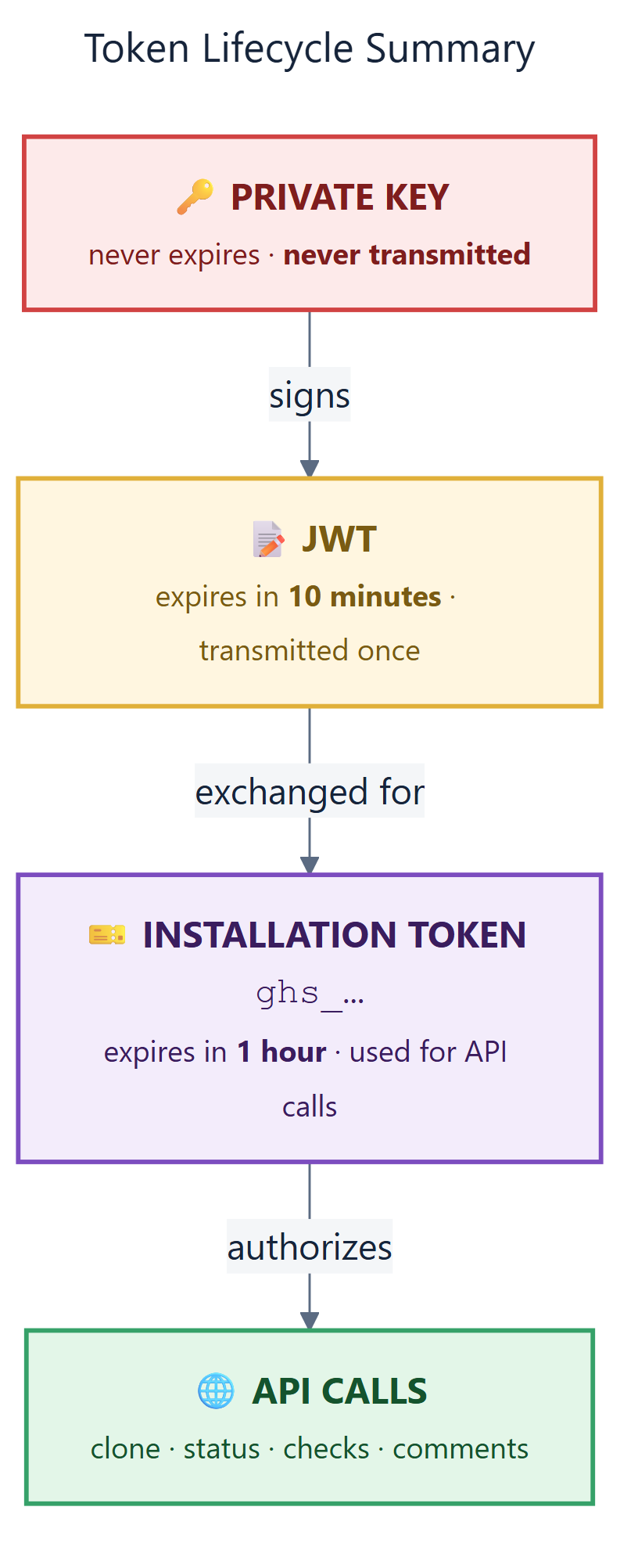

3.9 Token Lifecycle Summary

PRIVATE KEY (never expires, never transmitted)
     │
     ▼ signs
JWT (expires in 10 minutes, transmitted once)
     │
     ▼ exchanged for
INSTALLATION TOKEN ghs_... (expires in 1 hour, used for API calls)
     │
     ▼ authorizes
API CALLS (clone, status, checks, comments)

Citations (all from GitHub Docs):
About authentication with a GitHub App — the three authentication levels.
Generating a JWT for a GitHub App — JWT structure, claims, RS256 signing.
Managing private keys for GitHub Apps — key generation, storage, rotation.
Generating an installation access token — the token exchange API.
Authenticating to the REST API — which endpoints accept which token types.
Behind GitHub’s new authentication token formats — the ghs_, ghp_, gho_ prefix system.
Building CI checks with a GitHub App — creating check runs with an installation token.

4. The “Azure Pipelines” GitHub App — Role & Internals

4.1 What Is It?

The Azure Pipelines app (https://github.com/apps/azure-pipelines) is a first-party GitHub App published by Microsoft. It’s listed on the GitHub Marketplace and is free.

It is not a GitHub Action — it is a GitHub App, which is a fundamentally different integration mechanism. A GitHub App is an application with its own identity, its own permissions, and its own webhook subscriptions.

4.2 What It Does (Comprehensive List)

4.3 Permissions It Requests

When you install the Azure Pipelines GitHub App, it requests these permissions:

4.4 Webhook Events It Subscribes To

When installed on a repo, the app automatically registers to receive these webhook events:

4.5 How It Differs From OAuth/PAT Connections

Citation: How to streamline GitHub API calls in Azure Pipelines — GitHub Blog

5. Trigger Mechanism — How a Commit Becomes a Pipeline Run

This section traces the exact sequence of events from a developer pushing a commit to a pipeline starting.

5.1 The Full Sequence (GitHub App-based)

5.2 Identities Involved in the Trigger

5.3 The Webhook Payload (Push Event)

When GitHub sends the webhook, the HTTP request looks like this:

POST https://dev.azure.com/{org}/_apis/Hooks/IncomingWebhook?...
Content-Type: application/json
X-GitHub-Event: push
X-GitHub-Delivery: <unique-guid>
X-Hub-Signature-256: sha256=<HMAC-signature>

{
  "ref": "refs/heads/main",
  "before": "abc123...",
  "after": "def456...",
  "repository": {
    "id": 12345,
    "full_name": "my-org/my-repo",
    "private": true
  },
  "pusher": {
    "name": "developer-username",
    "email": "dev@example.com"
  },
  "commits": [
    {
      "id": "def456...",
      "message": "Fix login bug AB#1234",
      "author": { "name": "Dev", "email": "dev@example.com" }
    }
  ]
}

Webhook security:

• The X-Hub-Signature-256 header contains an HMAC-SHA256 signature of the payload body, signed with a shared secret established when the webhook was created.
• Azure Pipelines validates this signature to ensure the webhook is genuinely from GitHub and hasn’t been tampered with.

5.4 What Happens for OAuth/PAT Connections (Without the GitHub App)

When using OAuth or PAT instead of the GitHub App:

1. Azure DevOps creates a webhook on the GitHub repo during pipeline setup (using the OAuth token’s admin:repo_hook scope or the PAT’s permissions).
2. The webhook URL points to Azure DevOps’ incoming webhook endpoint.
3. On push, GitHub fires the webhook → Azure DevOps processes it the same way.
4. Status is reported via the Commit Status API (older, simpler) rather than the Checks API (richer).
5. Source code is cloned using the stored OAuth token or PAT instead of an installation access token.

The key difference: the webhook is a repo webhook (owned by the repo) rather than an App webhook (managed by the GitHub App installation).

Citations:
Webhook events and payloads — GitHub Docs
Triggers in Azure Pipelines — Microsoft Learn

Limitations

• For best performance, we recommend a maximum of 50 pipelines in a single repository. For acceptable performance, we recommend a maximum of 100 pipelines in a single repository. The time required to process a push to a repository increases with the number of pipelines in that repository. Whenever there’s a push to a repository, Azure Pipelines needs to load all YAML pipelines in that repository to determine if any of them need to run, and loading each pipeline incurs a performance penalty. In addition to performance issues, having too many pipelines in a single repository can lead to throttling on GitHub’s side, as Azure Pipelines may make too many requests in a short amount of time.
• The use of extends and include templates in a pipeline impacts the rate at which Azure Pipelines makes GitHub API requests and can lead to throttling on GitHub’s side. Before running a pipeline, Azure Pipelines need to generate the complete YAML code, so it must fetch all template files.
• Azure Pipelines loads a maximum of 2000 branches from a repository into dropdown lists in the Azure DevOps Portal, for example in the Select a branch window for the Default branch for manual and scheduled builds setting, or when choosing a branch when running a pipeline manually. If you don’t see your desired branch in the list, type the desired branch name manually in the Default branch for manual and scheduled builds field. If you click the ellipsis and open the Select a branch dialogue and close it without choosing a valid branch from the drop-down list, you may see a Some settings need attention message and a This setting is required message below Default Branch for manual and scheduled builds. To work around this message, reopen the pipeline and enter the name directly in the Default branch for manual and scheduled builds field.

Citation: azure-devops-docs/docs/pipelines/repos/includes/limitations-gh.md at main · MicrosoftDocs/azure-devops-docs

6. Azure Boards AB# Linking — Multi-Org Resolution

6.1 How AB# Works

The Azure Boards GitHub App (https://github.com/apps/azure-boards) is a separate GitHub App from Azure Pipelines. Its sole purpose is work-item linking.

The flow:

Developer                  GitHub                    Azure Boards App           Azure DevOps
   │                         │                            │                        │
   │ commit: "Fix AB#1234"   │                            │                        │
   │────────────────────────▶│                            │                        │
   │                         │ webhook: push event        │                        │
   │                         │───────────────────────────▶│                        │
   │                         │                            │                        │
   │                         │                            │ Parse commit message   │
   │                         │                            │ Find "AB#1234"         │
   │                         │                            │                        │
   │                         │                            │ POST work item link    │
   │                         │                            │───────────────────────▶│
   │                         │                            │                        │
   │                         │                            │                        │ Create "Development"
   │                         │                            │                        │ link on WI #1234

1. Developer pushes a commit with AB#1234 in the message (or PR title/description).
2. GitHub fires a push (or pull_request) webhook to the Azure Boards App.
3. The Azure Boards App parses the commit messages and PR body for the AB#<id> pattern.
4. It calls the Azure DevOps REST API to create a Development link from work item 1234 to the GitHub commit/PR.
5. Optionally, if the message contains Fixes AB#1234 or Fixed AB#1234, and the commit lands on the default branch, the work item’s state is transitioned to Done/Resolved.

6.2 The Multi-Org Problem: 5 Azure DevOps Orgs, 1 GitHub Repo

This is a critical design limitation:

“You can connect a GitHub repository to only one Azure DevOps organization and project. If you connect the same GitHub repository to projects defined in two or more Azure DevOps organizations, you might experience unexpected AB# mention linking.”
— Microsoft Docs: Azure Boards-GitHub Integration

What actually happens internally:

When you install the Azure Boards app on a GitHub repo and connect it to an Azure DevOps project, the connection is stored as a mapping:

GitHub Repo (org/repo) ──────▶ Azure DevOps Org + Project

If you connect the same repo to 5 different Azure DevOps organizations:

1. Each AzDO org installs (or reuses) the Azure Boards GitHub App.
2. Each installation creates its own webhook subscription for that repo.
3. When a commit with AB#1234 is pushed, GitHub fires the webhook to all registered webhook endpoints.
4. Each of the 5 Azure DevOps organizations receives the webhook independently.
5. Each org looks up work item #1234 in its own database.
6. If org A has a work item 1234 and org C also has a work item 1234, both get linked to the same commit — even though they might be completely different work items.

GitHub does NOT resolve which org the AB# belongs to.

The AB# syntax has no org qualifier — it’s just a number. GitHub simply broadcasts the webhook. The resolution (or lack thereof) happens entirely on the Azure DevOps side, where each org independently processes the event.

                              ┌──────────────────┐
                              │  GitHub fires    │
                              │  webhook to ALL  │
                              │  subscribers     │
                              └────────┬─────────┘
                    ┌──────────────────┼──────────────────┐
                    ▼                  ▼                  ▼
            ┌──────────────┐  ┌──────────────┐   ┌──────────────┐
            │  AzDO Org A  │  │  AzDO Org B  │   │  AzDO Org C  │
            │  Has WI#1234 │  │  No WI#1234  │   │  Has WI#1234 │
            │  → LINKED ✓  │  │  → ignored   │   │  → LINKED ✓  │
            └──────────────┘  └──────────────┘   └──────────────┘
                                                     (WRONG link!)

6.3 Recommended Architecture for Multi-Org

Citations:
Azure Boards-GitHub integration overview — Microsoft Learn
Connecting Azure Boards GitHub App to Multiple Azure DevOps Orgs — Josh Johanning
Multiple Azure Boards organizations / one GitHub org — Joost Voskuil

7. Fact-Check: “OAuth Dance for YAML Commit, Installation Token for Pipeline Runs”

The Claim: “When you create a pipeline via the Azure DevOps wizard, the UI does an OAuth dance to collect a user access token — that token is used to write the azure-pipelines.yml file into the GitHub repo. But when the pipeline actually runs, it uses the auto-created service connection (type GitHub-InstallationToken) to fetch source code and update build status.”

7.1 Verdict: ✅ Essentially Correct — The Wizard Uses a Dual-Token Model

This claim is true. The pipeline creation wizard uses two different tokens for two different purposes, even when the GitHub App is installed:

This is a dual-token model — and it’s by design, not a bug.

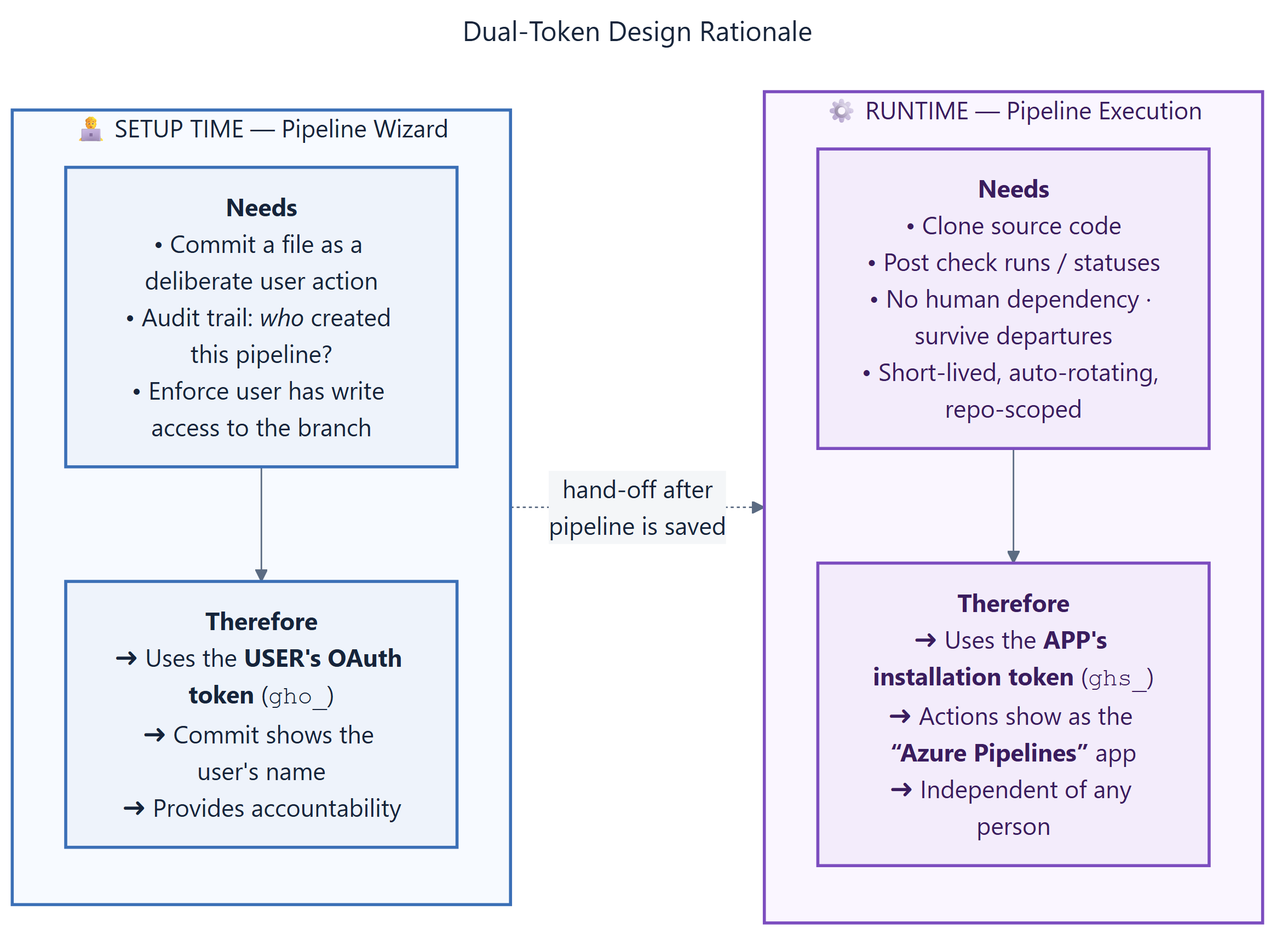

7.2 Why Two Tokens? The Design Rationale

The wizard and the pipeline runtime have fundamentally different needs:

Why not use the App’s installation token for the YAML commit too?

Although the Azure Pipelines GitHub App does have contents: write permission (see Section 4.3), the wizard deliberately uses the user’s identity for the initial YAML commit because:

1. Accountability — The commit that creates a pipeline is a significant repo change. It should be traceable to the human who initiated it, not attributed to a bot. Your Git history shows you created the pipeline.
2. Branch protection compliance — Many repos require commits to be signed or authored by an authorized user. A bot commit might be rejected by branch protection rules, CODEOWNERS requirements, or org policies.
3. Authorization verification — By committing as the user, GitHub enforces that the user actually has write access to that branch. The App’s installation-level access is broader and wouldn’t enforce per-user branch restrictions.

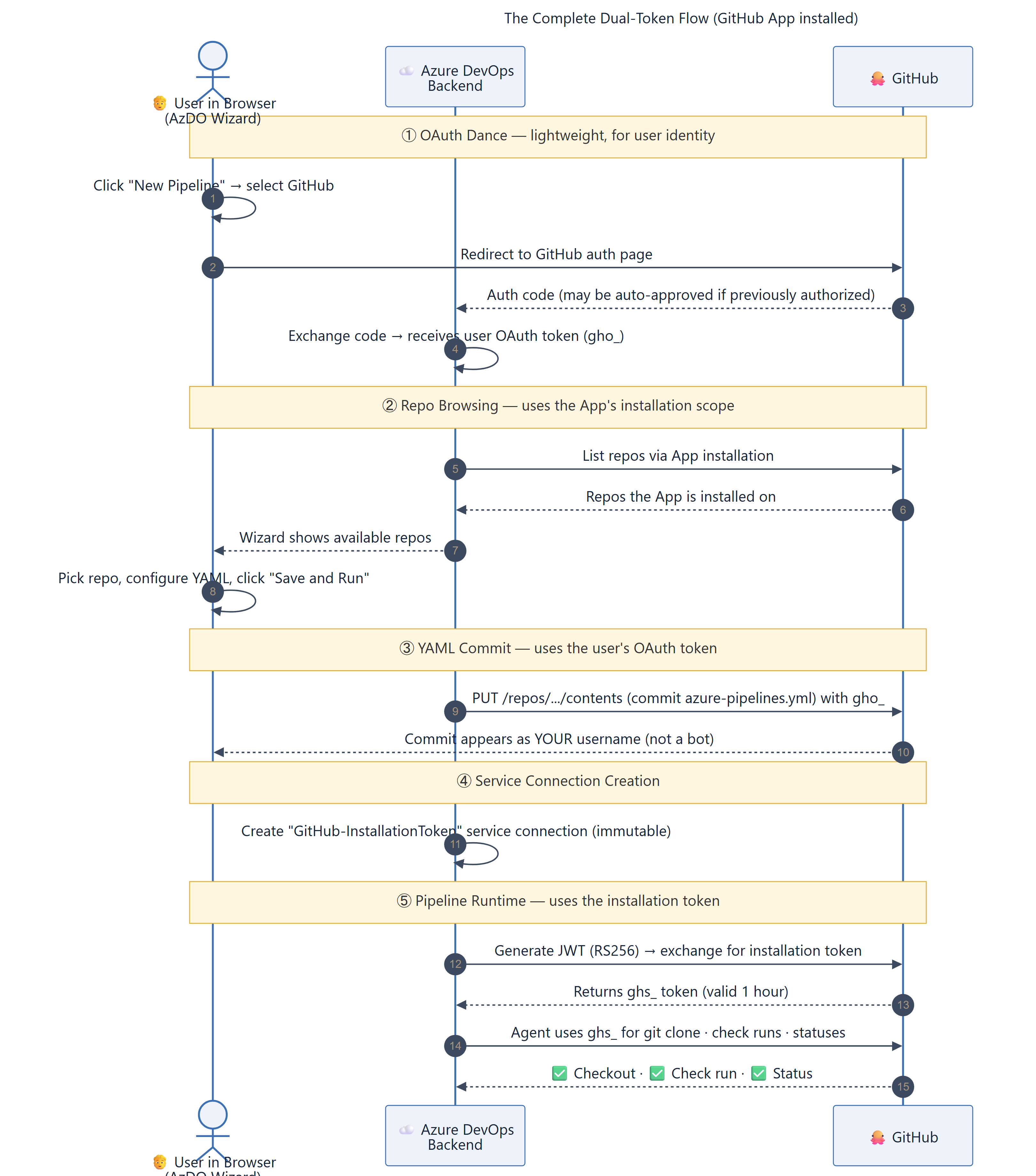

7.3 The Complete Dual-Token Flow (What Actually Happens)

Here is the accurate end-to-end flow when the Azure Pipelines GitHub App is installed and you create a new pipeline:

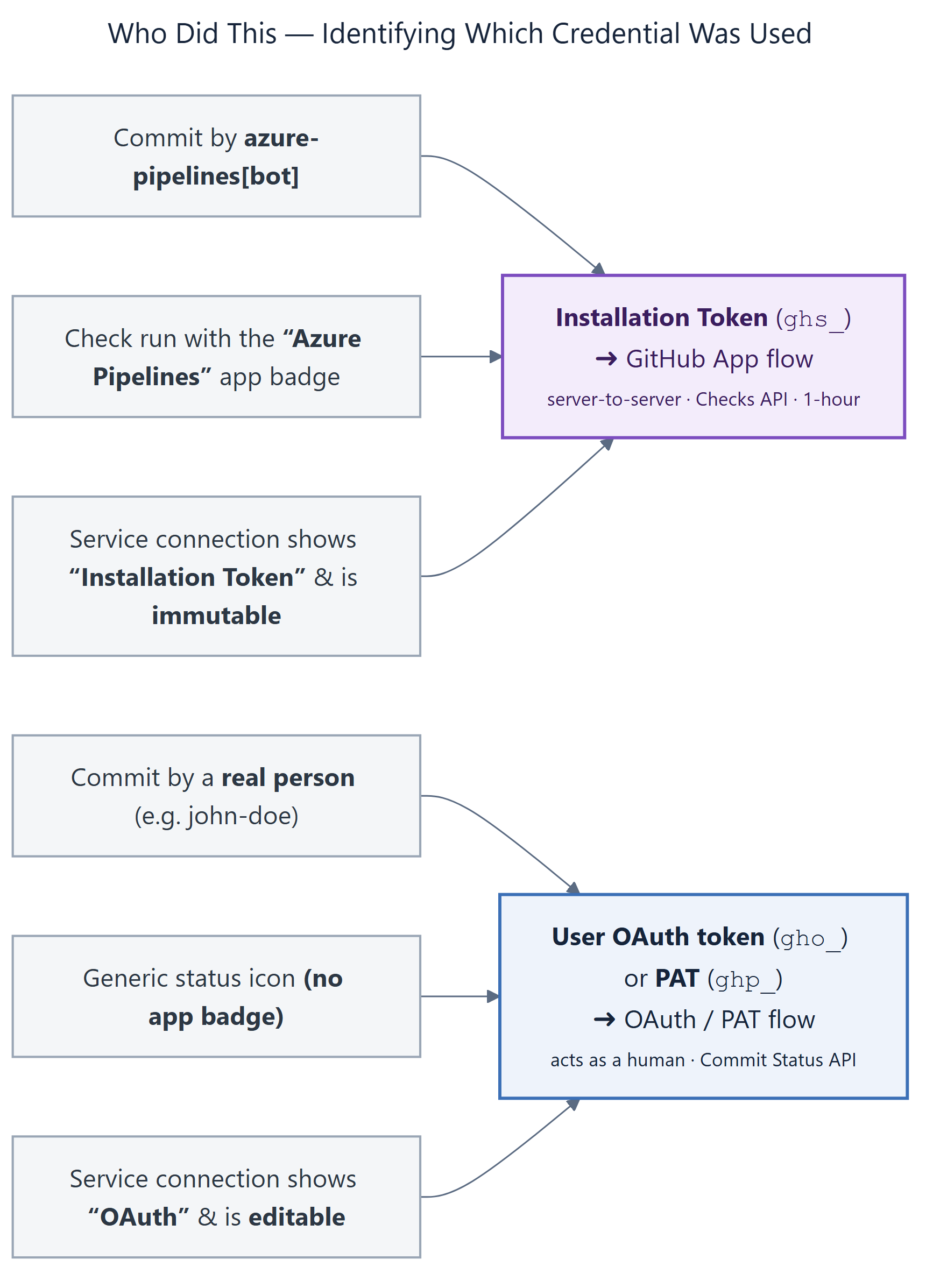

7.4 Evidence: How to Verify the Dual-Token Model

The YAML commit author is the definitive test. If the commit shows your name, the user’s OAuth token was used. If it showed azure-pipelines[bot], the App’s installation token would have been used. Real-world testing confirms: the commit shows the user’s name.

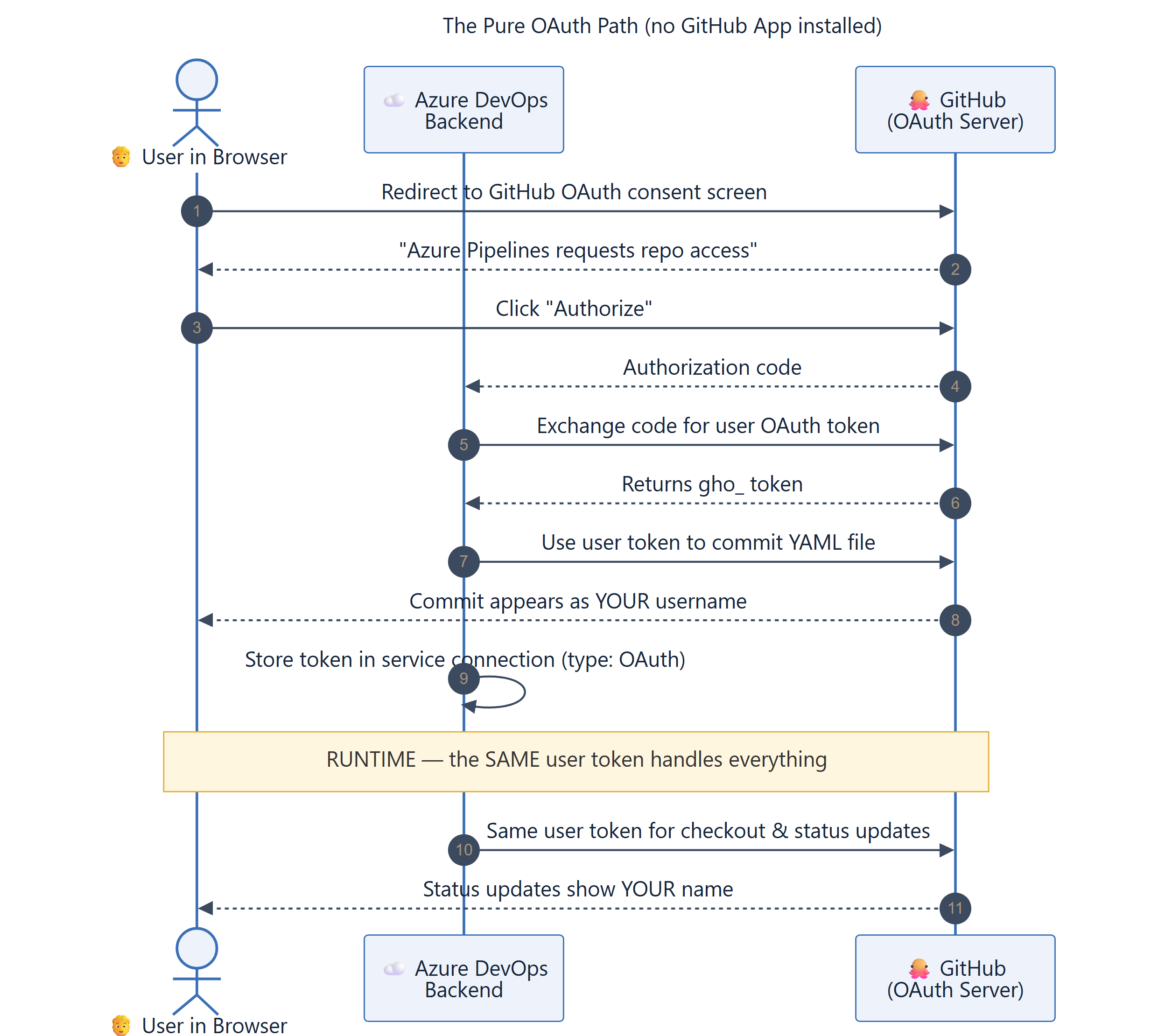

7.5 What About the Pure OAuth Path (No GitHub App)?

If the Azure Pipelines GitHub App is not installed and the user clicks “Authorize” in the pipeline wizard, this triggers the classic OAuth flow described in Section 2.1. In this case, the same user OAuth token is used for everything:

In the pure OAuth path, there is no token split — the user token handles everything (setup + runtime). The difference from the GitHub App path is:

7.6 Summary: Your Friend Was Right

Bottom line: The dual-token model is real and intentional. The wizard uses your OAuth identity for the YAML commit (accountability + branch protection compliance), then the pipeline switches to the GitHub App’s installation token for all runtime operations (no human dependency + short-lived tokens). Your friend’s description was accurate.

Citations:
Build GitHub repositories — Azure Pipelines | Microsoft Learn — describes both GitHub App and OAuth authentication paths, and the App’s contents: write permission for YAML commits.
YAML pipeline editor guide — Azure Pipelines | Microsoft Learn — describes the wizard’s commit behavior.

8. Deep Dive: GitHub Installation Tokens (ghs_) — The Complete Picture

This section explains GitHub Installation Tokens from first principles — what they are in the GitHub ecosystem at large, how they work, and specifically how Azure DevOps uses them as the GitHub-InstallationToken service connection type.

8.1 What Is a GitHub Installation Token?

A GitHub installation access token (also called an installation token) is a short-lived, scoped credential that allows a GitHub App to perform API operations on the specific repositories and organizations where it is installed.

Think of it this way:

Each installation is a separate trust relationship between a GitHub App and a GitHub account (org or user). When a GitHub App needs to do something (clone code, post a comment, create a check run), it generates an installation token scoped to that specific installation.

Key distinction: An installation token is NOT a user token. It doesn’t act as any human. It acts as the GitHub App itself. In GitHub’s UI, actions performed with an installation token appear as <app-name>[bot] (e.g., azure-pipelines[bot], dependabot[bot], renovate[bot]).

8.2 How Installation Tokens Fit in the GitHub Token Universe

GitHub has multiple token types, each with a distinctive prefix:

Citation: Behind GitHub’s new authentication token formats — GitHub Blog — explains the ghs_, ghp_, gho_, ghu_ prefix system and the rationale behind it.

The ghs_ prefix stands for “GitHub Server-to-server” — reflecting that these tokens are designed for automated, machine-to-machine communication, not human-interactive sessions.

8.3 How an Installation Token Is Created (The Three-Step Dance)

Every installation token starts with a private key and ends with a 1-hour scoped credential. Here’s the complete flow:

8.4 Installation Token Properties

8.5 How Installation Tokens Are Used in the Wild (Non-Azure Examples)

Installation tokens are the standard authentication mechanism for any GitHub App that performs automated operations. Here are common real-world examples:

Example 1: Dependabot (GitHub’s Own Bot)

Example 2: Renovate Bot

Example 3: Custom CI Bot

8.6 How Azure DevOps Uses Installation Tokens (The GitHub-InstallationToken Service Connection)

When you install the Azure Pipelines GitHub App and create a pipeline, Azure DevOps creates a service connection of type GitHub-InstallationToken. Here’s exactly what that means:

What the Service Connection Stores

Why It’s Named After Your GitHub Account

The service connection is auto-named with your GitHub username (or org name) because it corresponds to the installation of the Azure Pipelines GitHub App on that specific GitHub account. One installation = one service connection. If the App is installed on github.com/orgs/contoso, the service connection is named contoso.

Why It Cannot Be Changed

The message “This service connection is to a GitHub-InstallationToken and cannot be changed” exists because:

1. Microsoft manages the private key — it’s stored on their infrastructure, not in your service connection. There’s nothing for you to “edit.”
2. The Installation ID is fixed — it’s assigned by GitHub when the App is installed. You can’t change which installation this points to without uninstalling and reinstalling the App.
3. Tokens are generated dynamically — no static credential is stored in the connection. Every pipeline run generates a fresh ghs_ token via the JWT flow. There’s nothing to rotate or update.
4. Immutability is a security feature — preventing edits ensures no one can tamper with the authentication mechanism or redirect it to a different installation.

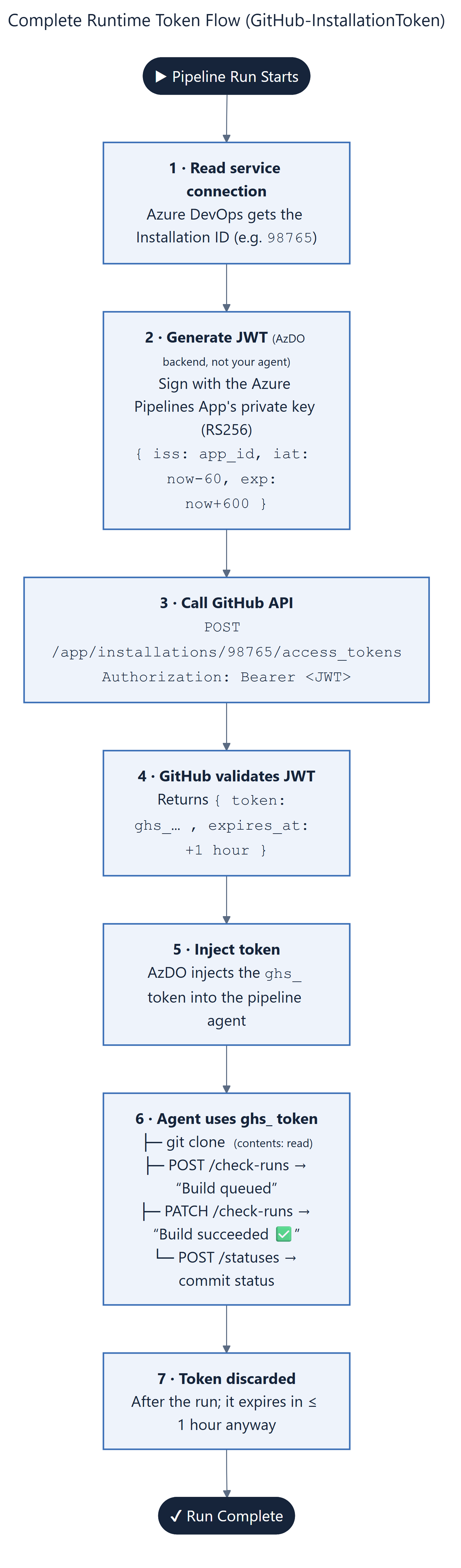

The Complete Runtime Flow

When a pipeline with a GitHub-InstallationToken service connection runs:

8.7 Installation Token vs. Other GitHub Credentials — When You See Each

8.8 Limitations and Gotchas of the GitHub-InstallationToken Service Connection

Citations:
Build GitHub repositories — Azure Pipelines | Microsoft Learn — describes the three authentication types and the GitHub App permissions table.
Generating an installation access token for a GitHub App — GitHub Docs — the JWT→token exchange API.
Behind GitHub’s new authentication token formats — GitHub Blog — token prefix system (ghs_, ghp_, gho_, ghu_).
About authentication with a GitHub App — GitHub Docs — overview of the three-level identity model.
Differences between GitHub Apps and OAuth apps — GitHub Docs — when to use which.
GitHub Azure CLI Extensions Issue #1971 — documents the inability to create InstallationToken service connections via CLI.
Azure Pipelines Tasks Issue #18413 — documents the GithubRelease@1 incompatibility with InstallationToken scheme.

9. References

Microsoft Official Documentation

GitHub Documentation

Community / Blog Posts

GitHub Issues (Known Limitations)

Document last updated on 2026-04-02. All cited URLs were accessible at the time of research.
